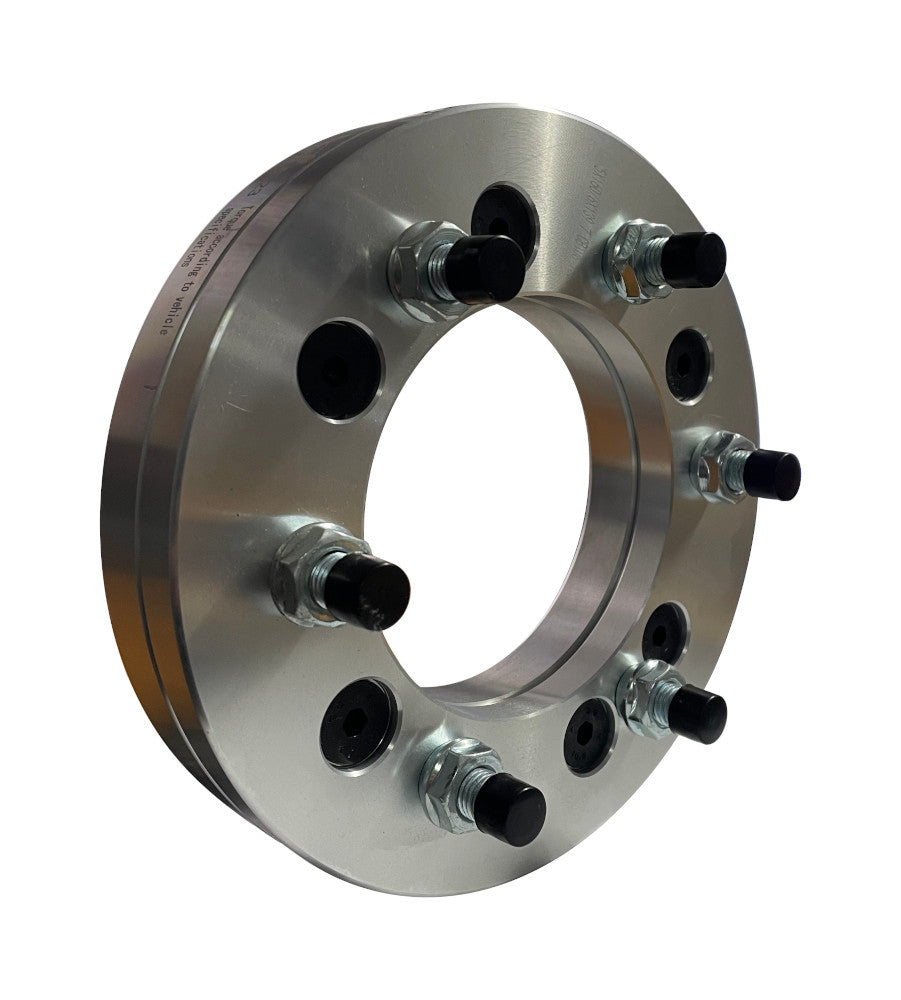

Mahindra Wheel Adaptor 5?160-6?139.7

Wheel Adaptor change PCD from 5 Stud 160 (Mahindra) to 6 Stud 139.7 (ex Hilux)

You attach the 160 PCD part of the adaptor to the vehicle, then you attach the 139.7 part to the 160 part.

Allows you to put normal 6 stud rims on Mahindra.

*Note – Price is per unit

• Wheel spacer material ALUMINUM


• Stud – 12×1.5mm – high tensile 10.9 grade


• Nuts – 40CrMo high tensile steel


• 35mm thick


• 160 PCD to 139.7 PCD


• Centre bore 108mm

Make sure the surface on the vehicle hub is clean and free from any debris before fitment.
The same applies to the back of the wheel spacer which should be clean.
Tighten all nuts by hand first, then torque in cross over sequence to 30 Nm. Then Torque to 120Nm.
When you have them fitted at a tyre fitment centre, keep an eye on the procedures because they normally tighten it with impact wrench. DO NOT allow them to use an impact wrench and make sure they tighten them in cross over sequence.
Check the wheel spacer nuts after the first 500 km to make sure they are tight. Thereafter check every 5000km.
