RAM¨ Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base

FEATURES

• Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware


• Included B size 1? RAM¨ rubber ball allows for connection to any B size RAM¨ double socket arm; ball and socket technology allows for near-infinite adjustability


• Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments


• Backed by a lifetime warranty

OVERVIEW
The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5? to 1.25? in diameter. Hardware included.

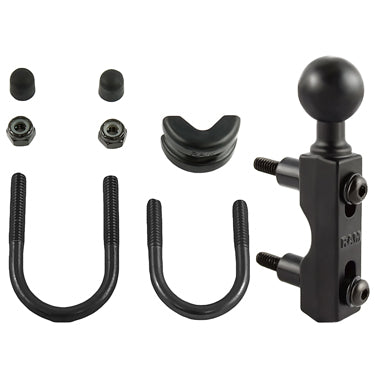

HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2? Hex Bolts
(2) 1/4?-20 x 2.5? Hex Bolts
(2) 1/2? Spacers
(2) 1/4? Split Lock Washers
(1) 1/4?-20 U-Bolt for .5? Ð 1? Rails
(1) 1/4?-20 U-Bolt for 1? Ð 1.25? Rails
(2) 1/4?-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5? Ð 1.25? diameter

BALL/SOCKET SIZE
B Size (1?)

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Marine-grade aluminium
