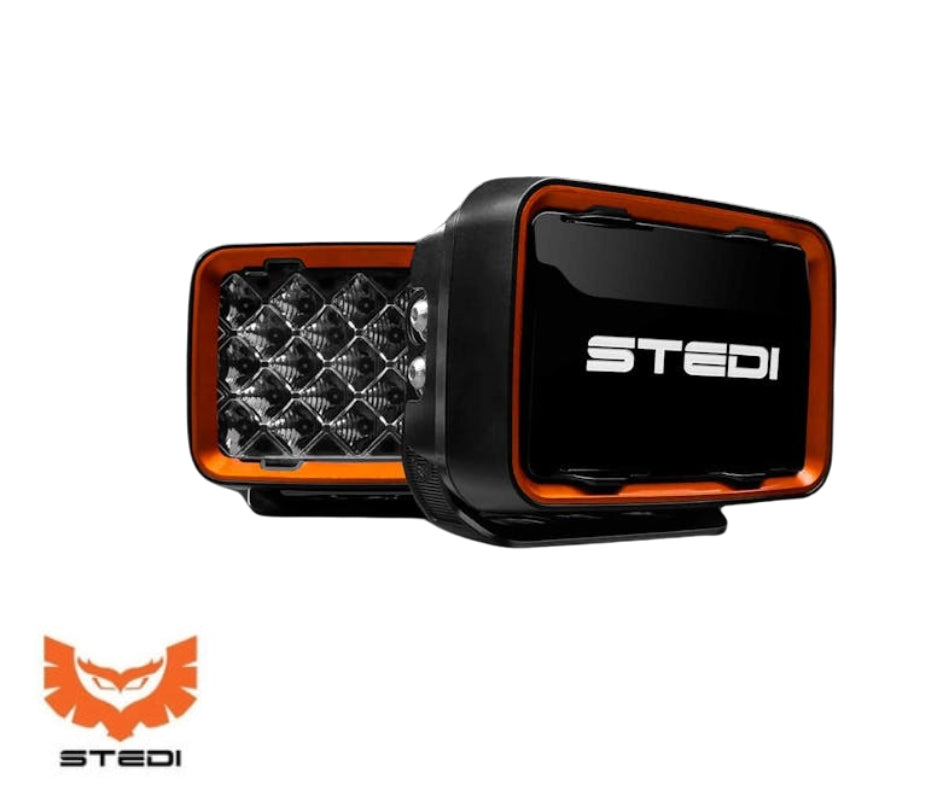

STEDI | Quad EVO LED Driving Lights Set
THE QUAD LEGACY.
The EVO family continues to grow, but this time with a little twist. We have been tirelessly working on another exciting addition to join the EVO bloodline and taken one of our legacy driving lights QUAD PRO™ and incorporated significant innovative enhancements, to develop the next generation of rectangular shaped driving lights. Infused with the quintessential EVO DNA, resulting in a more organically shaped driving light that delivers superior performance, QUAD EVO not only integrates cutting-edge technology but also exemplifies superior design.
Tech Specs
| Quad EVO Center Module |
|
| LED |
23 x CREE XP20 |
| RAW LUMENS |
22,080 (pair) |
| TESTED LUMENS |
6,159lm (single) | 12,049lm (pair) |
| AMP DRAW |
6A (pair) @12V |
| POWER DRAW |
144W (pair) |
| CANDELA |
856,695 (pair) |
| LUX |
928 m (pair) |
| BEAM PATTERN |
Combo Beam (Flood, Spot & Widespread)
|
| INGRESS PROTECTION |
IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) |
5000K |
| LUMEN MAINTENANCE |
30,000 LM-80 |
| VOLTAGE COMPATIBILITY |
10v & 30v |
| WEIGHT |
2.11kg (each) |
| OPERATING TEMPERATURE |
-40°C to 60°C |
| Quad EVO Side Module |
|
| LED |
18 x CREE XP20 + 5 x Widespread (each) |
| RAW LUMENS |
22,080 (pair) |
| TESTED LUMENS |
5,885lm (each) 11,726lm (pair) |
| AMP DRAW |
6A (pair) @12V |
| POWER DRAW |
144W (pair) |
| CANDELA |
856,695 (pair) |
| LUX |
578 m (pair) |
| BEAM PATTERN |
Combo Beam 210° Widespread
|
| INGRESS PROTECTION |
IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) |
5000K |
| LUMEN MAINTENANCE |
30,000 LM-80 |
| VOLTAGE COMPATIBILITY |
10v - 30v |
| WEIGHT |
2.35kg (each) |
| OPERATING TEMPERATURE |
-40°C to 60°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
What's Included
Quad EVO Center Module
- 2 x Quad EVO LED Driving Lights (Center)
- 2 x Protective STEDI™ Black Out Cover
- 2 x Grey Color Fascia
- 2 x Orange Color Fascia
- 2 x EVO Fascia Key & Key Chain
- 2 x Bracket & Stainless Steel Fastener Kit
- 1 x QR Code Fitting Instructions
Warranty: 5 Years (in order to be covered for this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)
Part Number: ST-01-QDE-002
